Using intelligent terminal lock, background management system and mobile phone APP trinity, human-computer interaction to freed the concept of the traditional key to unlocking (anti-copy).The security interaction with the lock can be carried out by the background system control, mobile phone APP combined with password, face, fingerprint and other ways of identity verification,it's easy to operate the unlocking and locking. On the basis of controlling operating rules, accounts, permissions and roles, the background system realizes the storage of operating process, traceability,positioning and tracking of operating users, as well as the precipitation and accumulation of big data, such as operating time, distance and frequency.

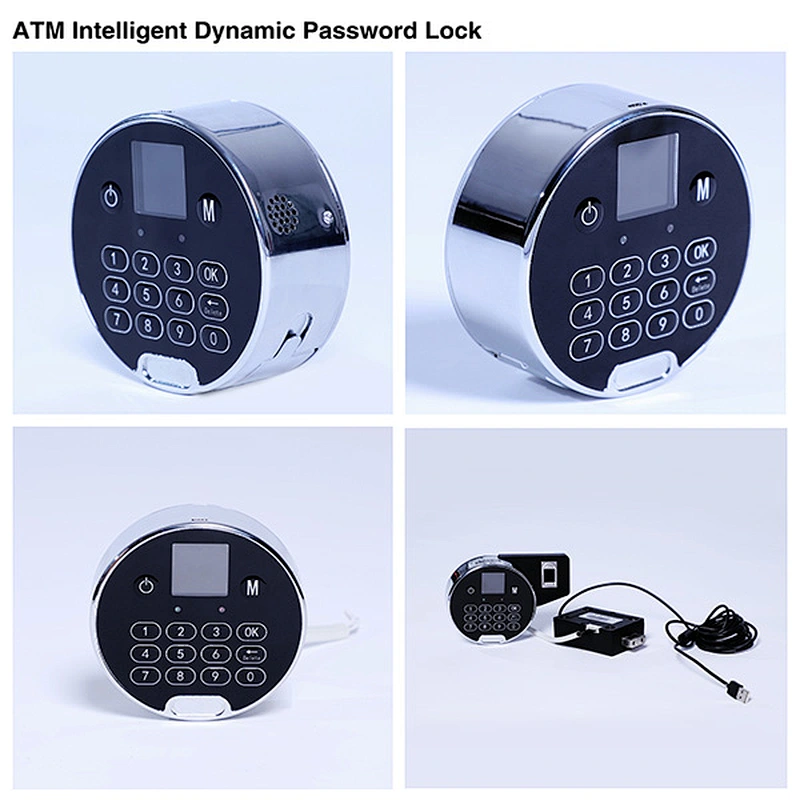

ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Product CharactersATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Adopts the most advanced Internet of Things (IOT) technology, mobile communication technology and micro-motor control technology.ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
With theunlocking and locking function of open-close type door for ATM machine, safe boxdoor and other financial industry machine.ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
The safe and reliable lock body structure, and the motor driven lock tongue mechanism withunpackproof, shock resistance, shockproof and other excellent characters.ATM CDM intelligent dynamic password lock
The motor control unit and mechanical execute mechanism adopt the isolation typecontrol mode, it ensures that the lock will not be unlocked by illegal electronic controlled afterlocking.ATM CDM intelligent dynamic password lock
With the sensor to detect the unlocking and locking of the lock tongue, the status of the lock tongue can be monitored in real time and the abnormal information will be displayed on the lock screen.ATM CDM intelligent dynamic password lock
Withthe displayed function of QR code, operating content and theoperating voiceremind function.
Adoptsdynamic password, one password one time, double operation of the unlocking mode with asymmetric encryption and decryption algorithm, coupled with thestrict encryption and decryption mechanism, can be authorized authentication,encryption anddecryption processing to ensure the safety of the lock unlocking/ locking and data transmission.
After the QR code scanned by Mobile APP, the related data of lock will be uploaded to the platform for storage,and will provide a large number of effective basis for the efficient management decisions by management.
It combines four languages: simplified Chinese, traditional Chinese (Cantonese), English, Thai.
No need for operators to configure keys, PAD and other handheld devices, only need to install thefree APP to the mobilephone. It simplifies a variety of complicated device handoverprocedures and work order making, issuing, filling, scanning, and ignores the original fixed device input (electronic key or PDA). Meanwhile it also willimprove efficiency and reduces labor cost.
Passwordincorrect punishment mechanism: after entering continuous incorrect password for 5 times, the system will be locked for 3 minutes, during this period thekeyboard operation is prohibited. After 3 minutes the locked status will be released and the password can be re-entered. The number of incorrect password entering and the alarm time will be uploaded to the background when the code is scanned next time.ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Reminding locking alarm function: after unlocking it will remind "please lock the door" every 30 seconds one time. After 10 times as 5 minutes, it will trigger the alarm. The lock will continue to play an alarm sound, and the alarm will last for 5 minutes.
Anti-hijack function: add *# or 00 after enteringthe password, there will be a threatened alarm pushed to the background.
Lowelectric quantity alarm function:when the battery electric quantity is lower than 35% (5V), the system interfacewill display"low electric quantity alarm" and voice reminds the low electric quantity every start up time. It reminds the customer to replace the battery in time. After the low electric quantity alarm, the system can normally unlock and lock the door for 50 times at most.
Withtheemergency power jack, using for emergency when the battery runs out.ATM CDM intelligent dynamic password lock
Strong endurance:can be continuous for more than 200 days under the condition of unlock and lock 2 times a day.
ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Product CertificationATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Product ParametersATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Product CertificationATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Passesthe Ministry of Public Security ATM electronic anti-theft lock GA374-2001 B class lock and GB-10409 anti-theft safe boxstandard detection certification.ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
At present, the ONLY ONE in China passes the combination certification of Shanghai Public Security Bureau"Technical Specifications for Offline Electronic Coding Lock in Shanghai".ATM CDM intelligent dynamic password lock
At present, the ONLY ONE in China passes the"Type Inspection"certification of the Third Research Institute of the Ministry of Public Security.ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
Passes theUSUL certification.ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
ATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock Product ParametersATM CDM intelligent dynamic password lock ATM CDM intelligent dynamic password lock
| ITEMS | SPECIFICATIONS | |
| Performance Parameter | Lock Power Supply | Four #5 1.5V alkaline batteries or USB power supply |
| Standby Electricity | <60μA | |
| Working Electricity | <180mA | |
| Working Environment | Atmospheric pressure 86KPa~106KPa, clean air, no strong electromagnetic field, no strong shock, no corrosive gas and substance | |
| WorkingTemperature | -20℃~65℃ <90%RH | |
| StorageTemperature | 0℃~49℃ <83%RH | |

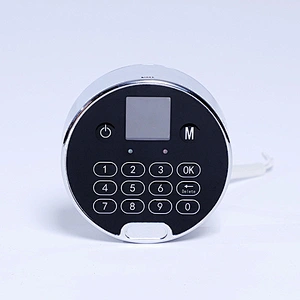

| Display | 1.44" TFT color screen | |
| ElectrostaticDischarge | Contact discharge:±8KV, air discharge: ±15KV | |
| Communication Interface | USB | USB 2.0 |
| AccessControl | UserIdentityAuthentication | User account + ID code |
| Locking Mode | Enter single-use dynamic password by keyboard | |
| Misoperation Punishment | Prohibit tooperate for 3 minutes after enteringcontinuous incorrect password for 5 times | |

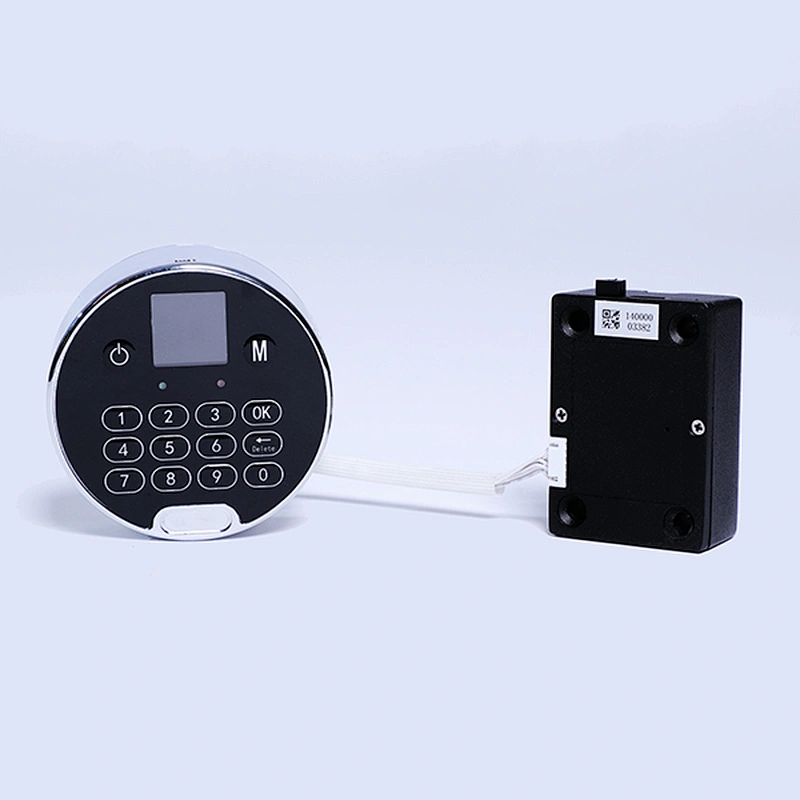

| ControlMode | Enter the password by thecontrol panel, the opening and closing (stretching) of the lock tongue is controlled by the lock body electromechanical execution unit | |
| PasswordMode | Dynamic password | |
| Specification Measurement | ControlPanel | Φ100mm |
| LockBody | L86mm * W 60mm * H 30.8mm | |
| LockBodyCable | White 10pin wire harness, wire length 206mm | |
| Battery | AA LR6, 1.5V alkaline dry battery normal installation | |
| Installation Method | Indoor installation, not waterproof | |
